RACE INSPIRED

The ARCH 1s draws influence from both cruiser and street sport riding to create a motorcycle that defies industry categorization. The 1s features the first production single-sided billet aluminum swingarm from ARCH. Rear/mid-mounted foot controls provide a more aggressive riding position.

RACE INSPIRED

The ARCH 1s draws influence from both cruiser and street sport riding to create a motorcycle that defies industry categorization. The 1s features the first production single-sided billet aluminum swingarm from ARCH. Rear/mid-mounted foot controls provide a more aggressive riding position.

ARCH 1s

FEATURE HIGHLIGHTS

PERFORMANCE ARCHITECTURE

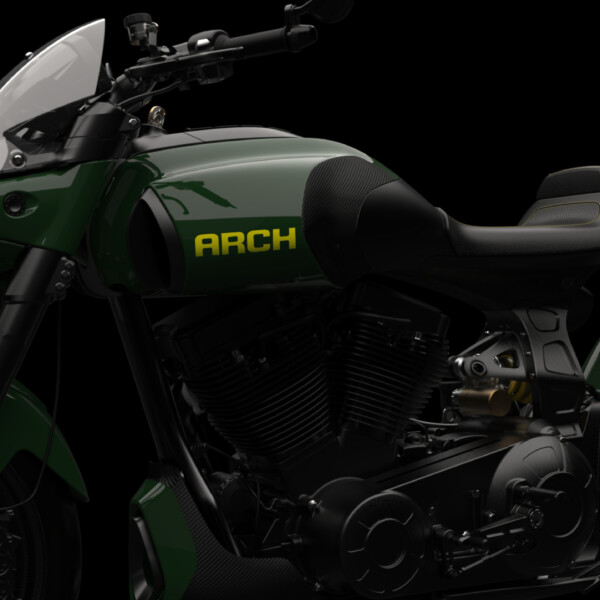

At the heart of the ARCH 1s sits the 124ci, high-torque ARCH / S&S V-twin engine, complemented by an ARCH-designed exhaust system. The chassis combines a steel mainframe with machined-billet aluminum subframe to create a unique performance architecture which gives the 1s intuitive handling and power delivery. Carbon fiber is used extensively throughout the 1s, providing a lighter, more agile riding experience.

ARCH 1s

SINGLE-SIDED SWINGARM

The 1s features the first single-sided swingarm from ARCH Motorcycle. Designed to be both functional and aesthetically appealing, the 1s swingarm follows our simple, elegant and efficient manufacturing philosophy. Functionality is improved via ease of maintenance and the rear carbon fiber wheel is unobstructed for visual appeal. Additionally, the swingarm works in conjunction with the Öhlins rear shock absorber to push the unsprung mass of the wheel and tire back to the road for a more responsive feel.

INTEGRATED FUEL + AIR SYSTEM

The ARCH 1s utilizes a carbon fiber fuel cell with a built-in air intake and filtration system. Airflow is fed through side vents at the front of the carbon tank leading directly to the intake system housed at the rear of the tank. This location reduces the bulk of a side-mounted air filtration system and creates a streamlined riding position while delivering optimal intake flow.

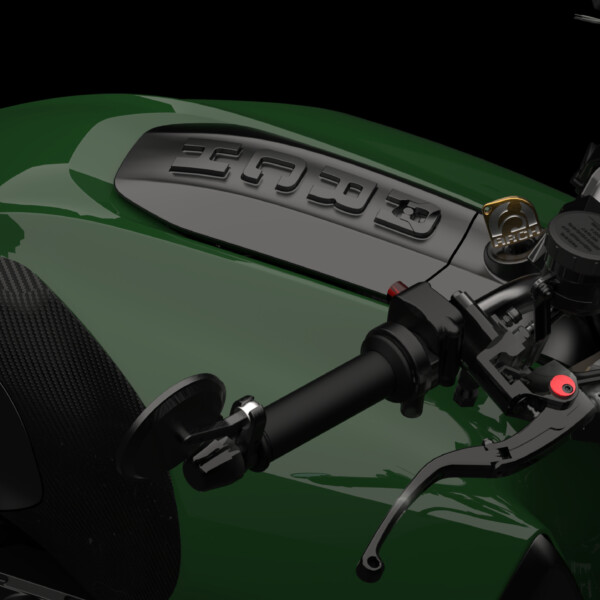

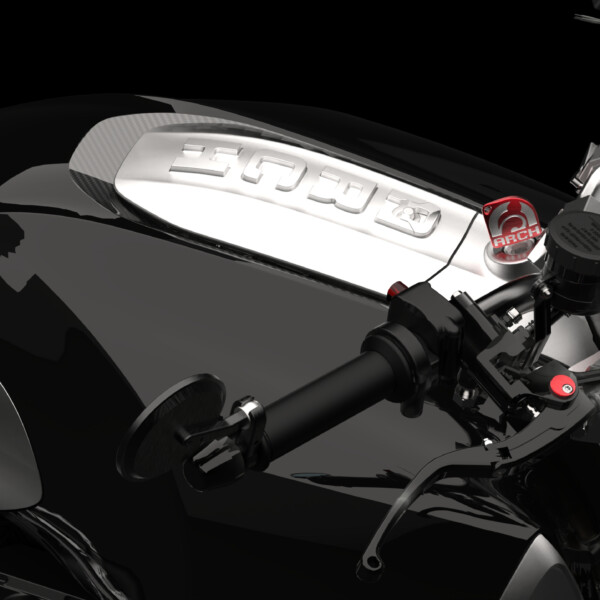

MECHANICAL FUEL FILL COVER

The ARCH 1s fuel cell is accessed through a cleverly hidden gas cap integrated into a hinged billet aluminum machined panel. With a turn of the flip-up latch the fuel cover opens providing easy access for refueling. [Desktop test comment remove]

FEATURE HIGHLIGHTS

ARCH 1s slide 1

At the heart of the ARCH 1s sits the 124ci, high-torque ARCH / S&S V-twin engine, complemented by an ARCH-designed exhaust system. The chassis combines a steel mainframe with machined-billet aluminum subframe to create a unique performance architecture which gives the 1s intuitive handling and power delivery. Carbon fiber is used extensively throughout the 1s, providing a lighter, more agile riding experience.

PERFORMANCE ARCHITECTURE

ARCH 1s

The 1s features the first single-sided swingarm from ARCH Motorcycle. Designed to be both functional and aesthetically appealing, the 1s swingarm follows our simple, elegant and efficient manufacturing philosophy. Functionality is improved via ease of maintenance and the rear carbon fiber wheel is unobstructed for visual appeal. Additionally, the swingarm works in conjunction with the Öhlins rear shock absorber to push the unsprung mass of the wheel and tire back to the road for a more responsive feel.

SINGLE-SIDED SWINGARM

The ARCH 1s utilizes a carbon fiber fuel cell with a built-in air intake and filtration system. Airflow is fed through side vents at the front of the carbon tank leading directly to the intake system housed at the rear of the tank. This location reduces the bulk of a side-mounted air filtration system and creates a streamlined riding position while delivering optimal intake flow.

INTEGRATED FUEL + AIR SYSTEM

The ARCH 1s fuel cell is accessed through a cleverly hidden gas cap integrated into a hinged billet aluminum machined panel. With a turn of the flip-up latch the fuel cover opens providing easy access for refueling.

MECHANICAL FUEL FILL COVER

FEATURE HIGHLIGHTS

PERFORMANCE ARCHITECTURE

At the heart of the ARCH 1s sits the 124ci, high-torque ARCH / S&S V-twin engine, complemented by an ARCH-designed exhaust system. The chassis combines a steel mainframe with machined-billet aluminum subframe to create a unique performance architecture which gives the 1s intuitive handling and power delivery. Carbon fiber is used extensively throughout the 1s, providing a lighter, more agile riding experience.

ARCH 1s slide 2

SINGLE-SIDED SWINGARM

The 1s features the first single-sided swingarm from ARCH Motorcycle. Designed to be both functional and aesthetically appealing, the 1s swingarm follows our simple, elegant and efficient manufacturing philosophy. Functionality is improved via ease of maintenance and the rear carbon fiber wheel is unobstructed for visual appeal. Additionally, the swingarm works in conjunction with the Öhlins rear shock absorber to push the unsprung mass of the wheel and tire back to the road for a more responsive feel.

ARCH 1s

INTEGRATED FUEL + AIR SYSTEM

The ARCH 1s utilizes a carbon fiber fuel cell with a built-in air intake and filtration system. Airflow is fed through side vents at the front of the carbon tank leading directly to the intake system housed at the rear of the tank. This location reduces the bulk of a side-mounted air filtration system and creates a streamlined riding position while delivering optimal intake flow.

ARCH 1s

MECHANICAL FUEL FILL COVER

The ARCH 1s fuel cell is accessed through a cleverly hidden gas cap integrated into a hinged billet aluminum machined panel. With a turn of the flip-up latch the fuel cover opens providing easy access for refueling.

“Redefining the American Sport Cruiser.”

ARCH 1s

SPORT FORWARD

The sport-influenced 1s provides a more aggressive riding position allowing for smoother transitions and harder cornering. Utilizing proprietary CNC-machined aluminum components and extensive use of carbon fiber throughout, the result is a race-inspired machine that redefines the Sport Cruiser.

ARCH 1s

SPORT FORWARD

The sport-influenced 1s provides a more aggressive riding position allowing for smoother transitions and harder cornering. Utilizing proprietary CNC-machined aluminum components and extensive use of carbon fiber throughout, the result is a race-inspired machine that redefines the Sport Cruiser.

ARCH 1s engine

KEY SPECIFICATIONS

2032 563
Displacement (cc) Dry Weight (lbs.)
115.3 4.5
Torque (ftlb @ RPM) Tank Capacity (Gallons US)

TAILORED TO YOU

The ARCH 1s features a bespoke aesthetic and ergonomic package tailoring the fit and finish of the motorcycle to its owner. Tailoring begins with the creation of your aesthetic package followed by an ergonomic fitting. Seat, foot and hand control adjustments result in an organic connection with the motorcycle. Assembled at ARCH Motorcycle’s Los Angeles facility, each ARCH 1s is built to order.

TAILORED TO YOU

The ARCH 1s features a bespoke aesthetic and ergonomic package tailoring the fit and finish of the motorcycle to its owner. Tailoring begins with the creation of your aesthetic package followed by an ergonomic fitting. Seat, foot and hand control adjustments result in an organic connection with the motorcycle. Assembled at ARCH Motorcycle’s Los Angeles facility, each ARCH 1s is built to order.

FULL SPECIFICATIONS



Engine S&S Cycle T124 45-degree downdraft fuel-injected V-Twin engine
Displacement 124ci (2032cc)
Drivetrain Proprietary Six-speed drivetrain with compact high-torque mainshaft and compact dry clutch
Chassis Tubular steel frame with CNC-machined aluminum subframe; single-sided swingarm

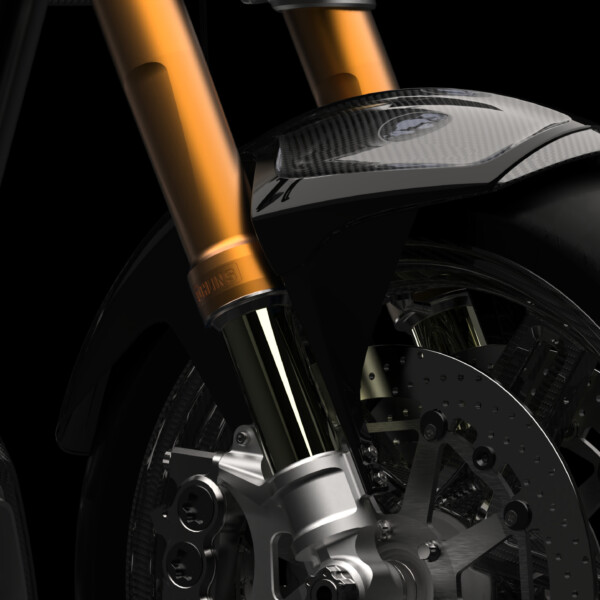

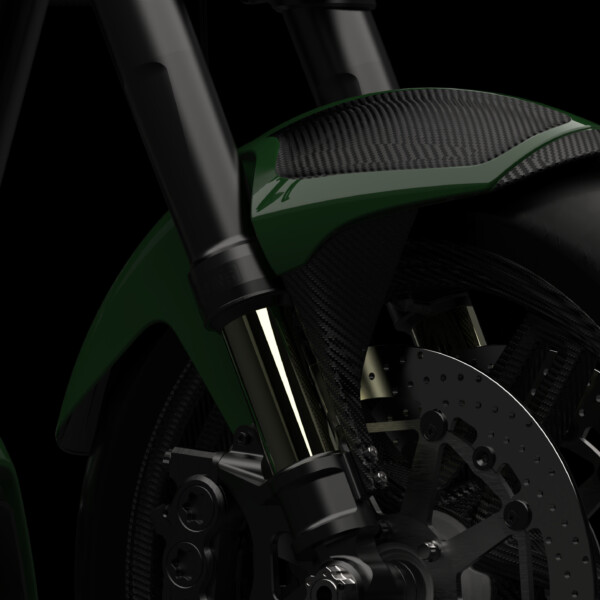

Front Suspension Fully adjustable ARCH/Öhlins FGRT series fork
Rear Suspension Fully adjustable ARCH/Öhlins rear shock with reservoir and hydraulic pre-load adjustment
Front Brakes Dual ISR 6-piston monobloc radial mount calipers with ISR floating dampened discs
Rear Brakes Single ISR 4-piston monobloc radial mount caliper with ISR semi-floating disc
ABS BOSCH
Front Wheel 17″ BST Carbon Fiber
Rear Wheel 17″ BST Carbon Fiber
Front Tire 120/70-17 Michelin Power RS
Rear Tire 240/45-17 Michelin Power RS
Foot Controls  Mid-mounted foot controls

CARB / EPA compliant; ABS standard equipment on 2021-later 1s models

FULL SPECIFICATIONS

Engine

S&S Cycle T124 45-degree downdraft fuel-injected V-Twin engine

Displacement

124ci (2032cc)

Drivetrain

Proprietary Six-speed drivetrain with compact high-torque mainshaft and compact dry clutch

Chassis

Tubular steel frame with CNC-machined aluminum subframe; single-sided swingarm

Front Suspension

Fully adjustable ARCH/Öhlins FGRT series fork

Rear Suspension

Full adjustable ARCH/Öhlins rear shock with reservoir and hydraulic pre-load adjustment

Front Brakes

Dual ISR 6-piston monobloc radial mount calipers with ISR floating dampened discs

Rear Brakes

Single ISR 4-piston monobloc radial mount caliper with ISR semi-floating disc

ABS

BOSCH

Front Wheel

17″ BST Carbon Fiber

Rear Wheel

17″ BST Carbon Fiber

Front Tire

120/70-17 Michelin Power RS

Rear Tire

240/45-17 Michelin Power RS

Foot Controls

Mid-mounted foot controls

CARB / EPA compliant; ABS standard equipment on 2021-later 1s models
